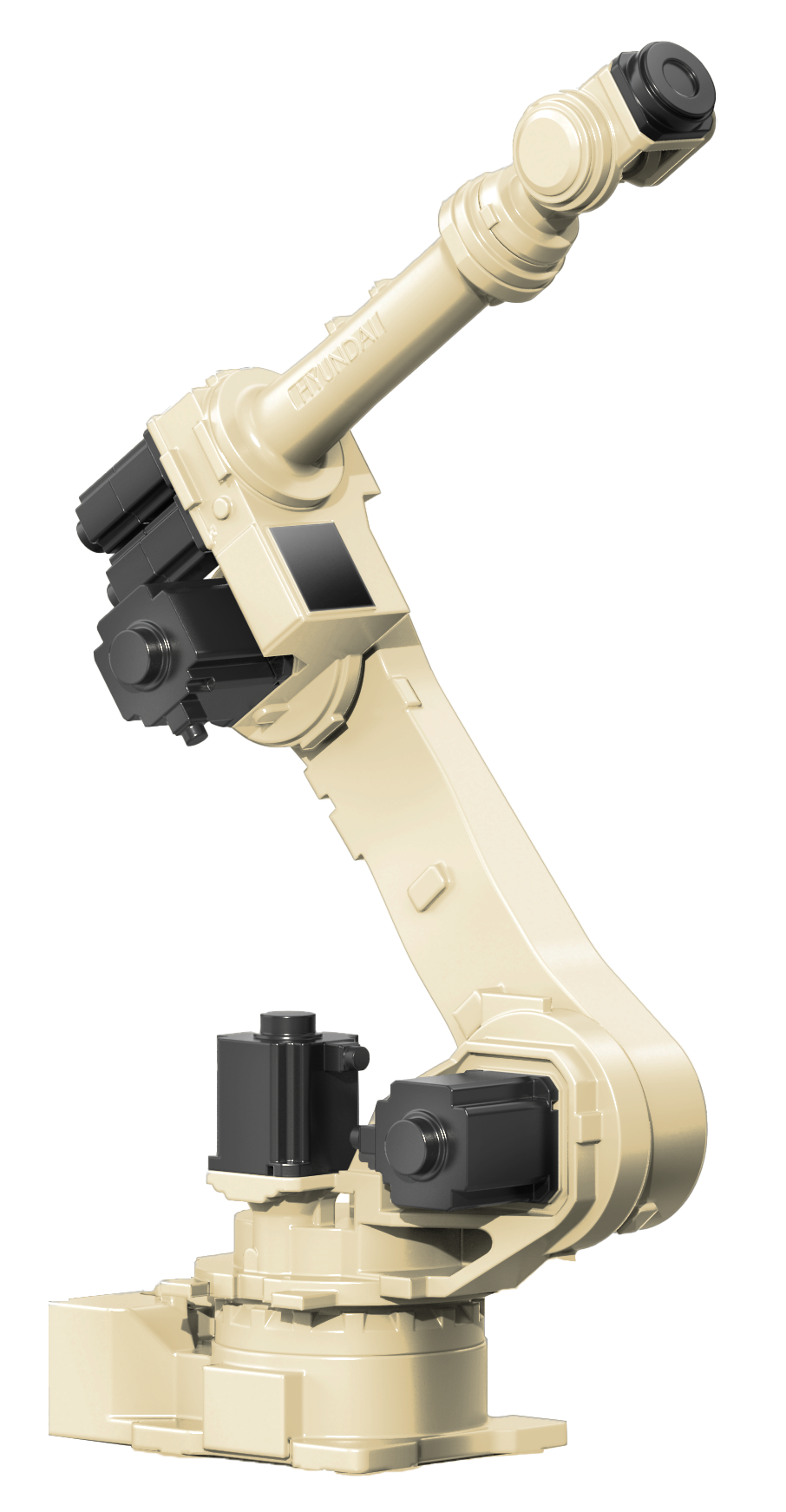

HDR50-22(HH050)
- Payload50kg
- Max.reach2,239mm
- Repeatability±0.05
- Applicable ControllerHi7-N00-60, Hi6-N00-60, Hi5a-S60
Fast and Efficient Industrial Robot, HDR50-22
Maximizing Production-Line Efficiency, HDR50-22The HDR50-22 model from HD Hyundai Robotics enables precise handling and can be applied to a wide range of applications and industries, including loading, unloading, assembly, alignment, and press operations.
Its compact structure and multi-axis design enable efficient operation even in confined spaces while providing excellent cost efficiency.
What Sets HDR50-22 Apart
Fast handling of light-to-medium loads significantly improves repetitive-task speed, while high repeatability helps maintain consistent quality.
Capable of handling products of various sizes and weights, it is suitable for multipurpose applications and provides a reliable balance of speed, precision, and flexibility.
This HD Hyundai Robotics robot is a key solution that improves the working environment while significantly increasing productivity.
Payload
Reach
Repeatability
Check out the Detailed Specifications of the HDR50-22(HH050)
| Structure | Articulated | ||
|---|---|---|---|
| Degree of Freedom | 6 | ||
| Drive Method | AC Servo | ||
| Max. Motion Range | Main Axes | Swivel | ±180° |
| Horizontal | +170 ~ -65° | ||
| Vertical | +180 ~ -80° | ||
| Wrist Axes | R2 | ±360° | |
| B(Bending) | ±125° | ||
| R1(Twisting) | ±360° | ||
| Max. Speed | Main Axes | Swivel | 175°/s |
| Horizontal | 175°/s | ||
| Vertical | 175°/s | ||
| Wrist Axes | R2 | 250°/s | |
| B(Bending) | 250°/s | ||
| R1(Twisting) | 350°/s | ||
| Payload | 50 kg | ||
| Allowable Torque | Wrist Axes | R2 | 22 kgf.m |
| B(Bending) | 22 kgf.m | ||
| R1(Twisting) | 15 kgf.m | ||
| Repeatability | ±0.05 mm | ||
| Ambient Temperature | 0 ~ 45 ℃ | ||
| Body Weight | 645 kg | ||
| Installation Method | Floor, Ceiling, Angle | ||
