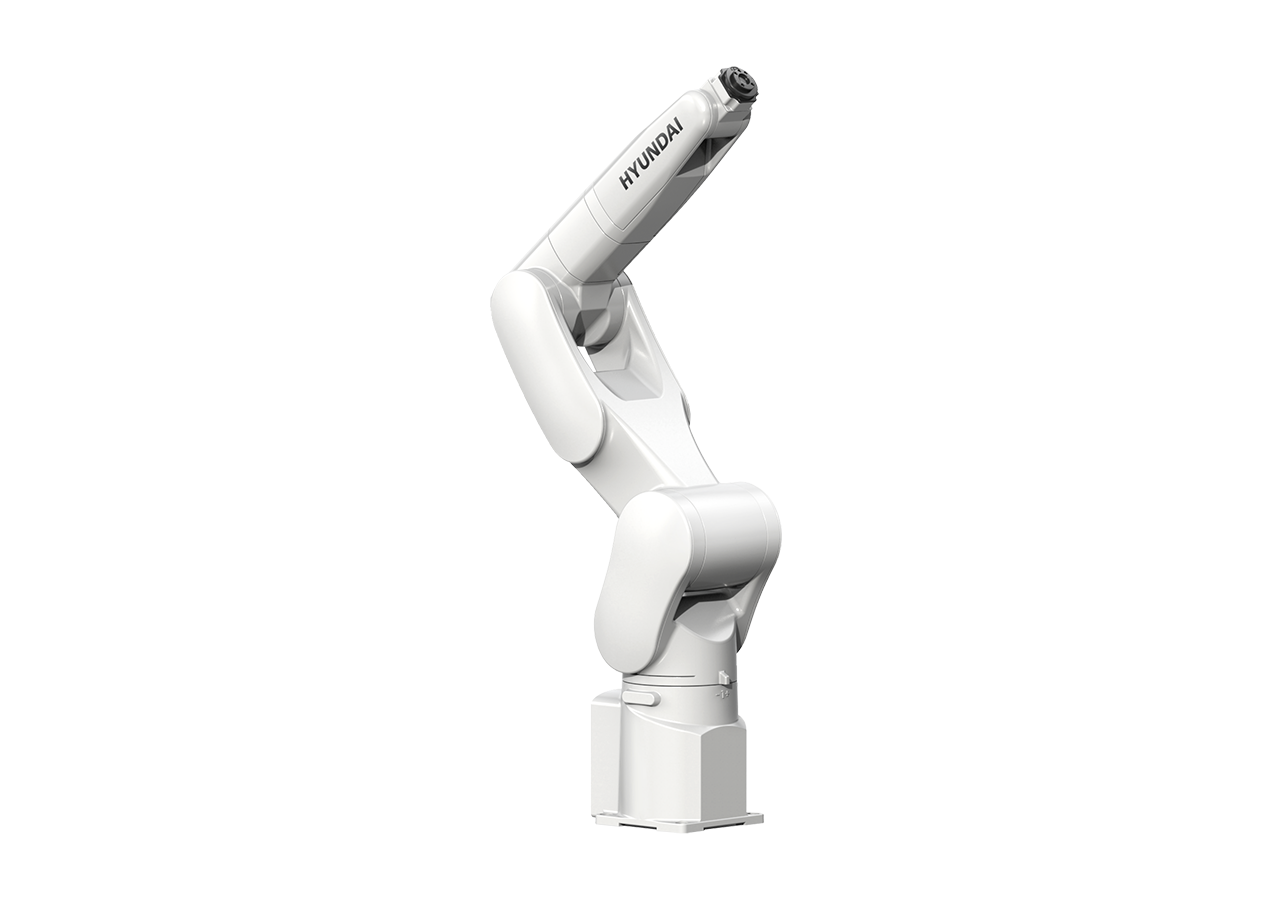

Industrial Robot

HDF7-9(HH7)

  • Payload7kg
  • Max.reach932mm
  • Repeatability±0.03
  • Applicable ControllerHi6-T15, N20, Hi5a-T10, S20
Product Specifications

HDF7-9(HH7)Check out the detailed specifications of the

Product Specifications
Structure Articulated Articulated
Degree of Freedom 6
Drive Method MethodAC Servo AC Servo

Max. Motion Range

Product Specifications
Main Axes Swivel
Horizontal
Vertical
±170 °
+180 ~ 55 °
+213 ~ -70 °
Wrist Axes R2
B(Bending)
R1(Twisting)
±190 °
±135 °
±360 °

Max. Speed

Product Specifications
Main Axes Swivel
Horizontal
Vertical
375 ˚/s
315 ˚/s
410 ˚/s
Wrist Axes R2
B(Bending)
R1(Twisting)
550 ˚/s
550 ˚/s
1000 ˚/s
Payload 7 kg

Allowable Torque

Product Specifications
Allowable Torque R2
B(Bending)
R1(Twisting)
1.73 kgf.m
1.73 kgf.m
1.02 kgf.m
Repeatability ±0.03 mm
Ambient temperature 0 ~ 40 ℃
Body Weight 42 kg
Installation method Floor
