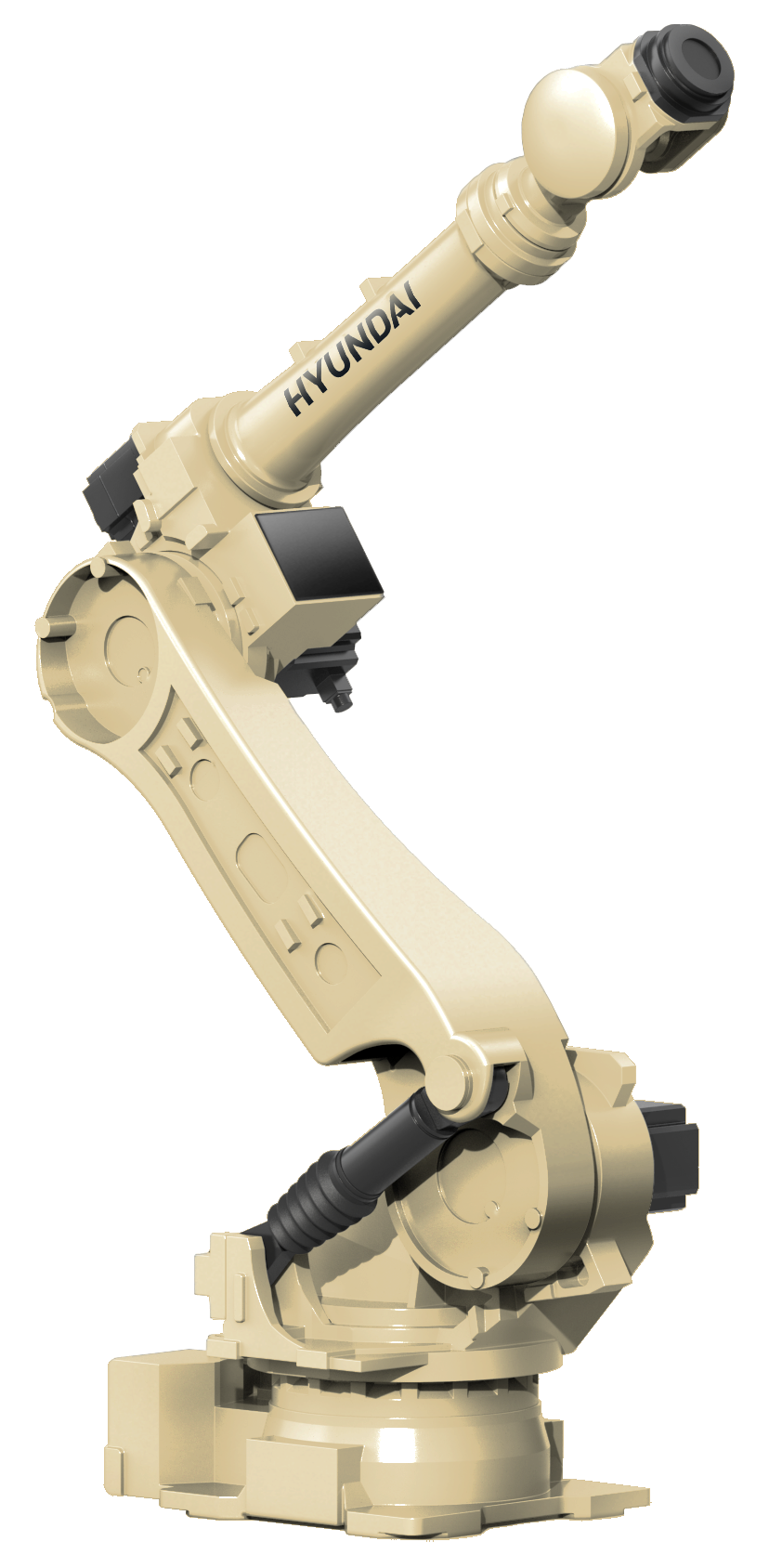

HDR220-26(HS220)
- Payload220kg
- Max.reach2,666mm
- Repeatability±0.04
- Applicable ControllerHi7-N00-00, Hi6-N00-00, Hi5a-S00, S10
THE GREATEST robot, HDR220-26
High-Performance Industrial Robot, HDR220-26The HDR220-26 from HD Hyundai Robotics is essential for mass-production processes such as spot welding, offering stable equipment handling together with fast and precise operation.
In addition, its robust durability and stability ensure the consistent quality customers expect, making it one of HD Hyundai Robotics' flagship industrial robots.
What Sets HDR220-26 Apart
Its high payload capacity withstands heavy loads and reaction forces while maintaining precise position control.
High-speed motion enables multiple work steps to be completed in a short time, maximizing productivity in high-volume processes.
High-strength materials and a heat-resistant structure are designed to withstand harsh conditions such as high temperatures, high currents, and strong reaction forces, ensuring a long service life.
It is a cost-effective choice designed to deliver an optimal return on investment (ROI).
Payload
Reach
Repeatability
Check out the Detailed Specifications of the HDR220-26(HS220)
| Structure | Articulated | ||
|---|---|---|---|
| Degree of Freedom | 6 | ||
| Drive Method | AC Servo | ||
| Max. Motion Range | Main Axes | Swivel | ±180° |
| Horizontal | +155 ~ +10° | ||
| Vertical | +190 ~ -80° | ||
| Wrist Axes | R2 | ±360° | |
| B(Bending) | ±128° | ||
| R1(Twisting) | ±360° | ||
| Max. Speed | Main Axes | Swivel | 120°/s |
| Horizontal | 105°/s | ||
| Vertical | 110°/s | ||
| Wrist Axes | R2 | 145°/s | |
| B(Bending) | 145°/s | ||
| R1(Twisting) | 220°/s | ||
| Payload | 220 kg | ||
| Allowable Torque | Wrist Axes | R2 | 145 kgf.m |
| B(Bending) | 145 kgf.m | ||
| R1(Twisting) | 79 kgf.m | ||
| Repeatability | ±0.04 mm | ||
| Ambient Temperature | 0 ~ 45 ℃ | ||
| Body Weight | 955 kg | ||
| Installation Method | Floor | ||
